EROGLU blank SK40-63-250
Brand: EROGLU
Art.-no. 23151858
Manufacturer article no. 402.17.63.250
EAN 4250122606635
Individual prices for customers after login
You need more information or have not found your desired product?
Application
For the production of special tools
Execution
- Steep taper and flange hardened and ground
- Soft shank for further machining
- Alloyed case-hardening steel with core tensile strength of at least 950 N/mm²
- Case-hardened HRC 58 ± 2, hardness depth 0.6 mm ± +0.2 mm
- Taper angle tolerance quality AT3 according to DIN 2080
- Taper Ra 0.2 surface quality
- Hole for data carrier DIN 69873 in the flange
- Black oxide surface
Notes
Previous standard DIN69871-1
Delivery
1x SK40 blank
Product information
CAD data (available after login)
 | |
Brand | EROGLU |
Tool holding device | SK 40 |
EAN | 4250122606635 |
Tool holding device type | Blank |
Manufacturer Part Number | 402.17.63.250 |

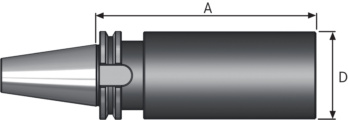

Form | A |
Projecting length (A) | 250 mm |
Diameter 2 (D) | 63 mm |
Collar diameter | 63.55 mm |
Coolant supply | No |
Product Group | 2BG |
Gross Weight | 6.290 kg |
